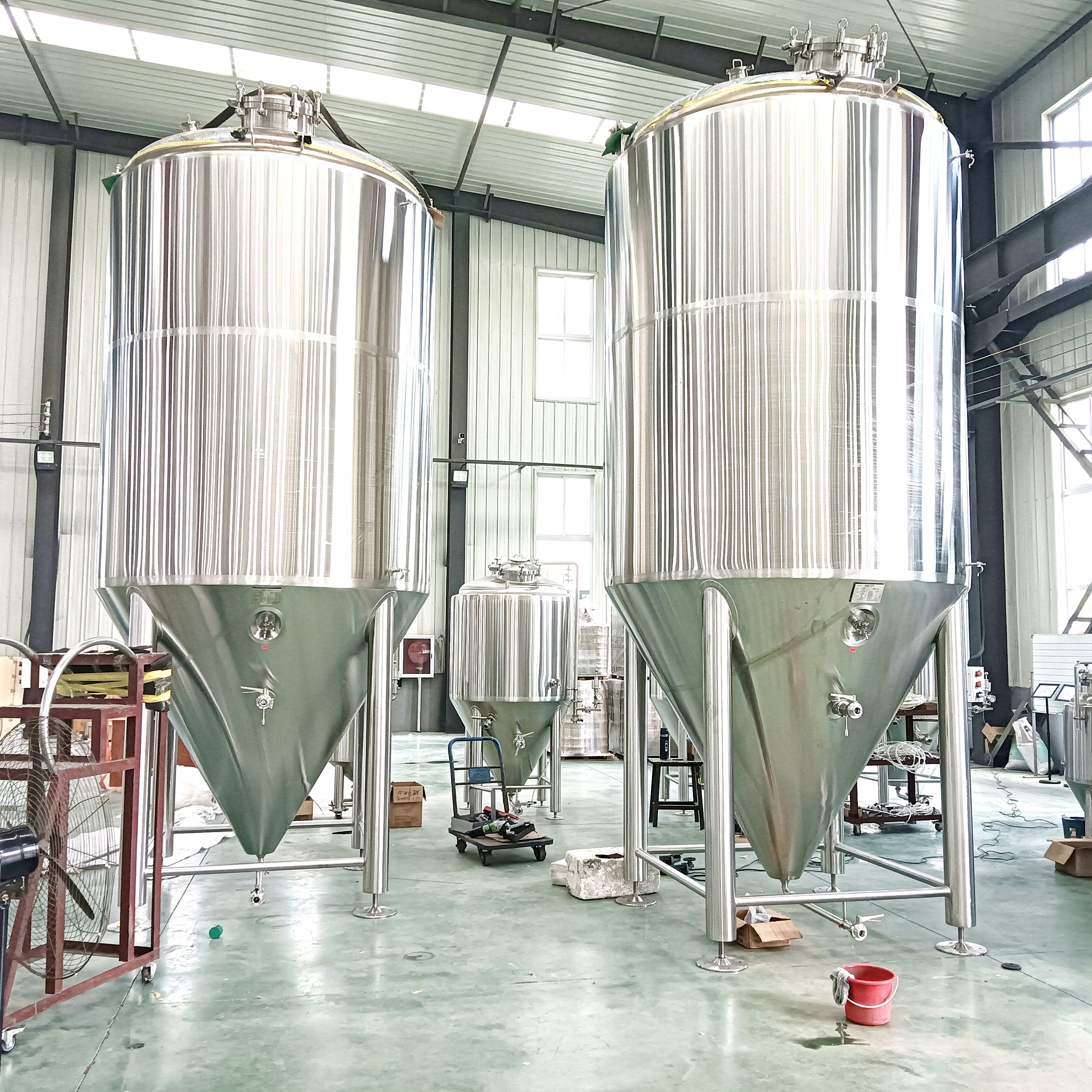

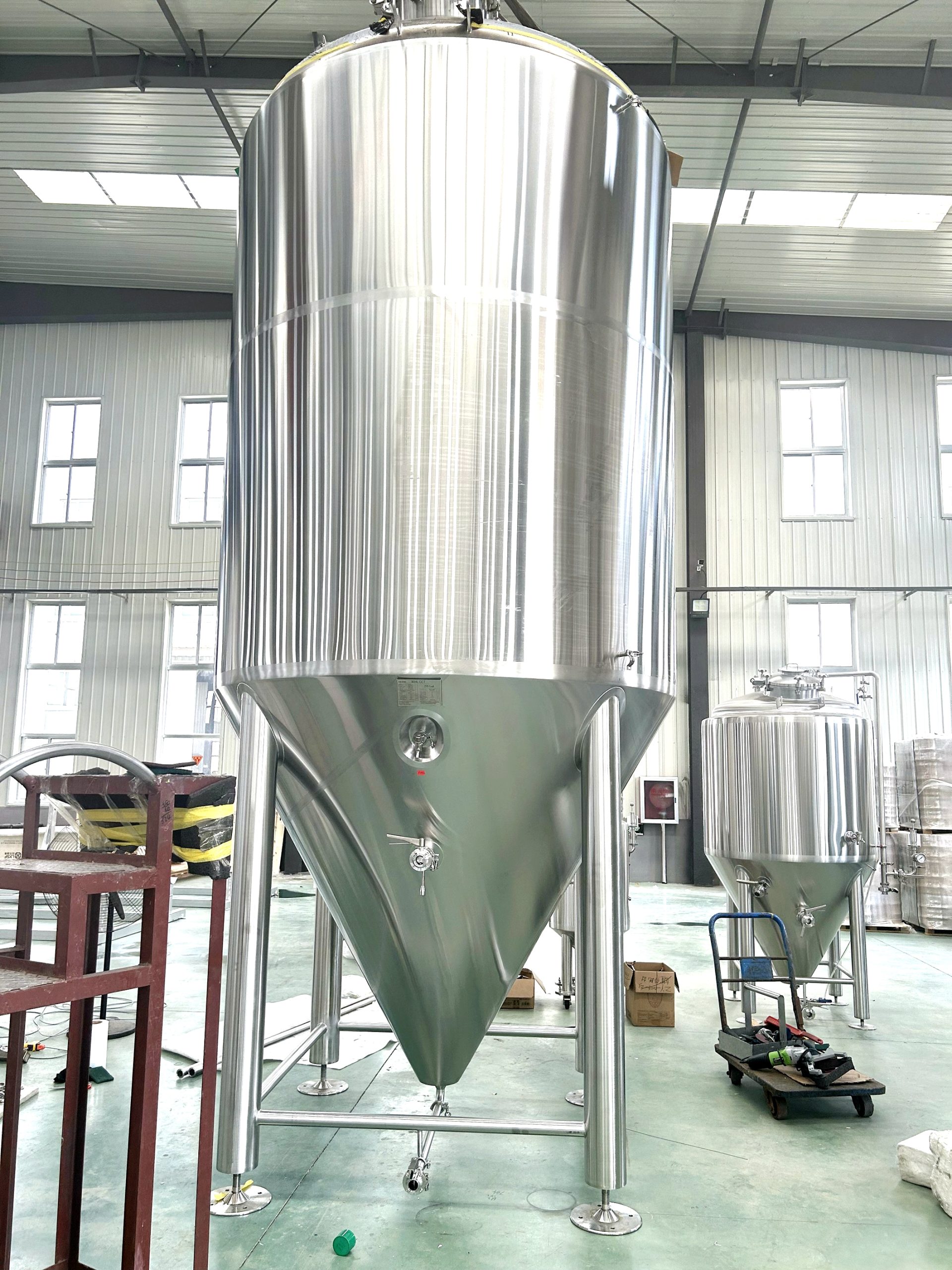

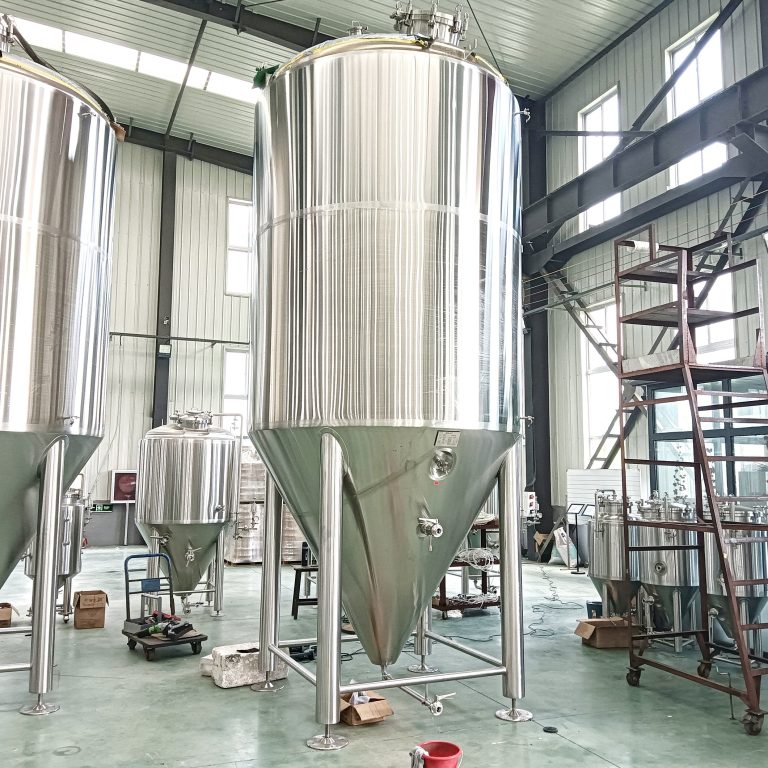

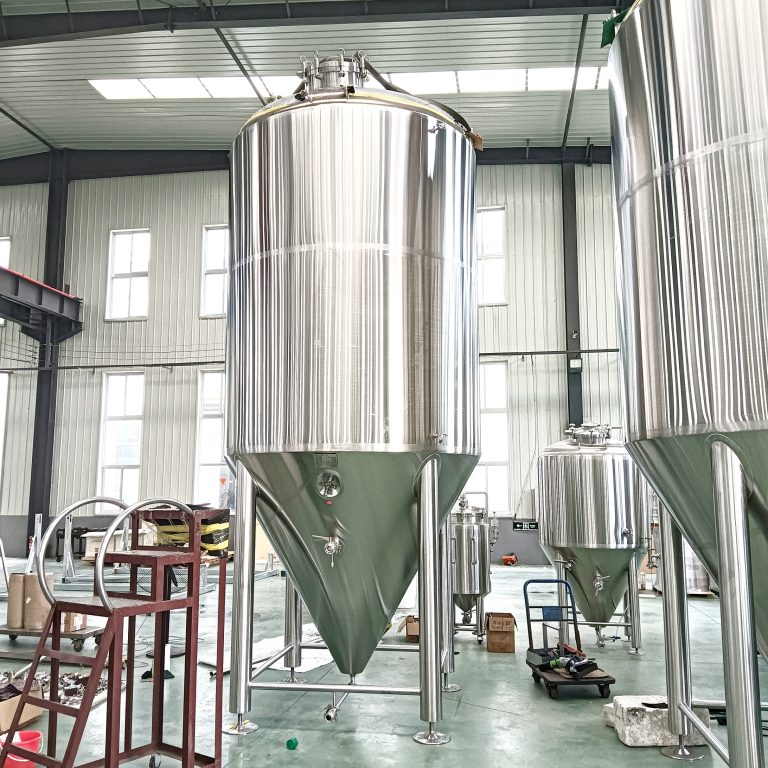

90HL Cylindro Conical Beer Fermenter is a specialized vessel used in breweries for fermenting beer. 90HL beer fermenter is suitable for medium to large-sized breweries, allowing for significant production volumes.

STANDARD FEATURES:

• Interior shell: 304 stainless steel, thicknessis 3mm
• Exterior shell: 304 stainless steel, thicknessis 2mm
• Interior and exterior finish polished to a sanitary finish
• Interior finish pickled and passivated
• Exterior brushed, #4 finish
• Fully welded exterior shell
• 60 degree cone bottom, with an average of 25% head space
• Rotating racking port
• Side manway door, shadowless
• Dual zone dimple cooling jackets (3 or more on larger tanks)
• Polyurethane insulation
• CO2 blowoff arm for maximum tank space utilization
• CIP arm and spray ball
• Sanitary tri-clamp connections
• Dry hop port 4-6”
• 1.5’’sample valve
• 2’’PVRV
• 2’’butterfly valves
• Spunding valve and pressure gauge
• Carb Stone 2” TC assembly
• Ladder hooks
• Tension braces on legs
• Stainless steel legs with stainless leveling footpads.

OPTIONS:

• Upgrade drain port size
• Glycol pipework.

The 90HL Cylindro Conical Beer Fermenter is a large-scale, stainless steel fermentation vessel designed for brewing beer. making it suitable for commercial breweries producing significant volumes of beer. These fermenters are shaped cylindrically with a conical bottom, allowing for effective sediment removal, yeast collection, and easy separation of the beer from the trub (sediment).
