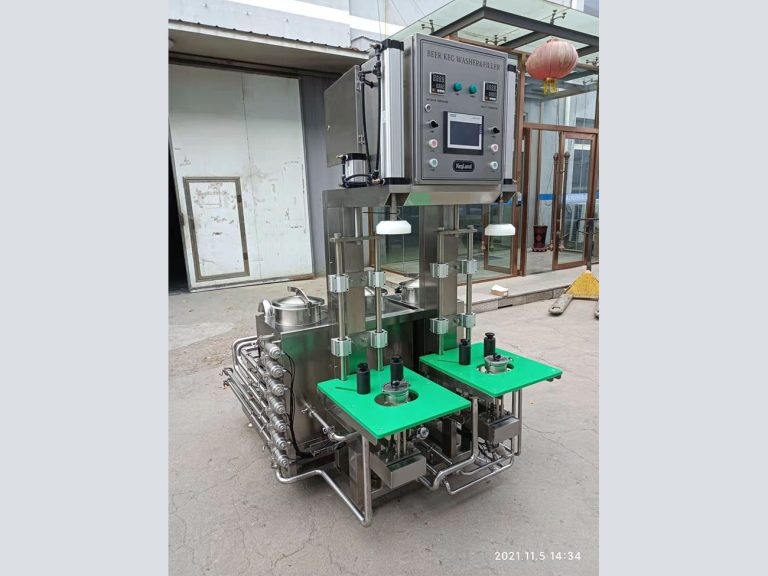

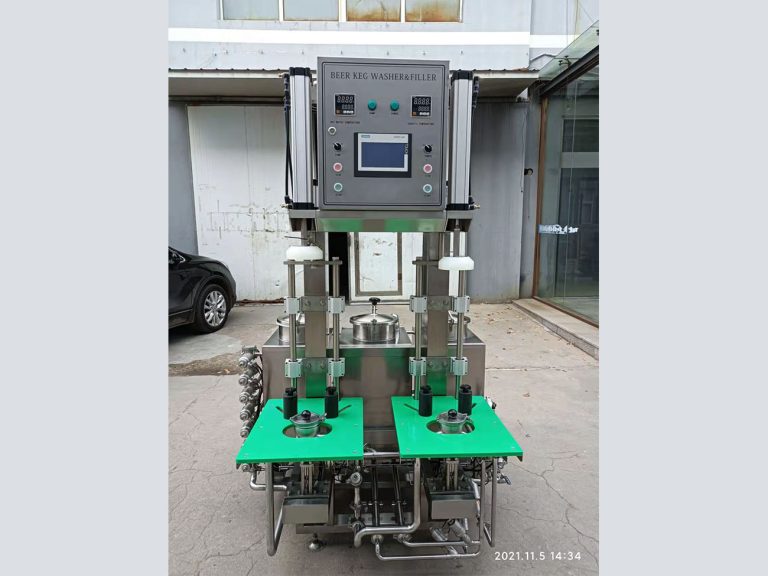

A beer keg washing and filling machine with table board lifting provides a convenient and efficient solution for breweries to automate the process of handling kegs, from washing to filling, while minimizing manual labor and increasing production efficiency.
Main Technical Parameters
| Equipment Outer Dimensions | 1200*1600*2000mm |
| Net Weight | 380KG |
| Power | Steam Heating: 3KW Electric Heating: 18KW |
| Production Capacity | 30-40 kegs/H |
| Applicable Kegs | Keg with Diameter 250-500mm, Height 360-600mm |
| Tank Heating Way | Electric Heating or Steam Heating |
| Table Board | lifting |
| Power Supply Voltage | AC 380V 50HZ (customized) |
Main function and feature
1.Automatic control by PLC, all parameters can be adjusted through touch screen.
2.Cleaning and filling process can be finished in this machine at one time.
3.With unique pressure maintaining system，performance stable and reliable, beer loss minimum.
4.With CIP automatic cleaning system.
5.Table board is lifting, and convenient to take kegs, labor-saving and time-saving.
Working process
Filling station: Fix the keg-keg spear opened–filling–stop—keg spear washed—take the keg
Washing Station: Impact the keg —keg spear opened —Drain residue–water rinse–caustic rinse–hot water rinse–steam sterilization — Co ₂ pressurization — Take the keg.
