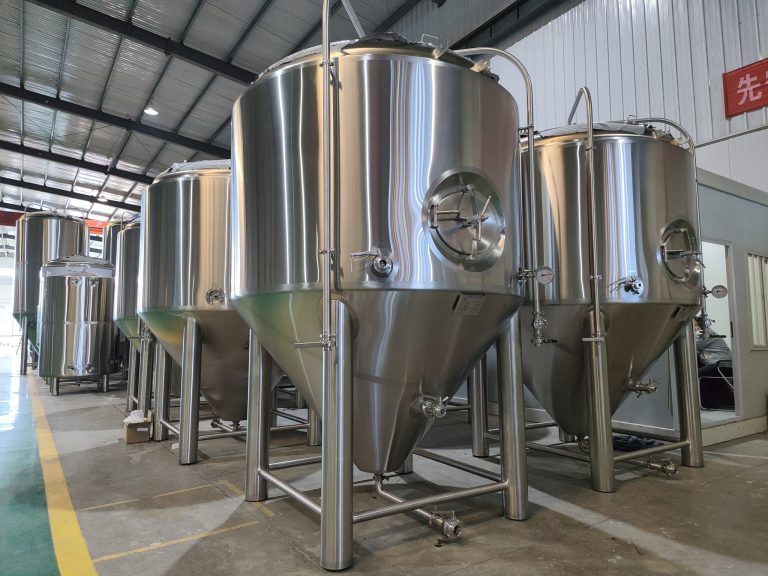

30BBL Conical Beer Fermenter

Stainless Steel Cooling Jacketed Conical Beer unitanks

Beer unitanks are designed specifically to meet unique and diverse brewing requirements. Whether small or large volume, our knowledge of the brewing process, customization capabilities and quality craftsmanship combine to satisfy the needs of the most discerning and demanding brewers. Our industry-leading beer unitanks are available ranging in size from 2 BBL to 300 BBL.

Advantage：

Certified stainless-steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. All beer unitanks and jackets inspected and pressure tested to 2 times operating pressure. All beer unitanks insulated with high efficiency polyurethane foam. We can custom fabricate any beer unitanks to meet your brewery’s space and height restrictions. Beer unitanks design pressure is 30 PSI。

Standard product features:

• Beer unitanksw/ 25% head space.
• Design pressure 30psi or 2
• Interior shell: SUS304, thickness 3mm.
• Exterior shell: SUS304, thickness 2mm.
• Interior and exterior finish bright polish to 2B, hygienic surface.
• 60° conical cone bottom.
• Racking port and discharge port with butterfly valve and fittings.
• Side or Top man way door, shadowless.
• Dimple glycol cooling jackets with glycol inlets and outlets.
• Polyurethane foam insulation, thickness 80mm/>3” on side and bottom.
• Fully welded exterior shell.
• 4 legs with levelling foot pads.
• CIP arm and spray ball.
• Rotating racking arm.
• Vacuum relief at 2bar.
• Pressure relief valve at 30psi as standard.
• Sanitary pressure gauge.
• Perlick style sample valve.
• Beer unitankscome with fittings, valves, and all parts.
• Lifting Lugs.
• P100 temperature sensor.
• Carbonation stone.
• Dry hopping port
• 24V DC liquid solenoid valve.

OPTIONS:

• Additional blow off pipework.
• Larger drain ports.
• Tangential inlets.
• Glycol pipework.
