A 450gallon (15BBL) cold brew coffee brewing system is designed for large-scale production, suitable for commercial operations like cafes, roasteries, or beverage companies. Here’s an overview of what such a system typically includes:

1.450Gallon(15bbl) Coffee Steeping Tank:

Brushed 304 Stainless Steel;

Top Glass Manway;

Coffee Ground Hydrator with large funnel for easy dumping;

Removable Milled V-Wire Lauter Floor (0.3mm slits),Can be customized to your particular micron size;

Variable speed agitator with custom coffee mixing design;

Double Wall(with cooling jacket and PU insulation), or can be with single wall, and if the coffee brewing tank with single wall, the single wall coffee brewing tank is simpler and less expensive compared to insulated or double-wall tanks, they can still be effective for cold brew coffee production,but the tank need to be placed in the cooling room, so that it can be maintaining a consistent temperature for achieving the desired flavor profile;

Glass grant for easy and safe pumping off vessel;

Side Manway port with adjustable plow for easy coffee grounds cleanout;

Recirculation piping with dispersion plate;

Multiple rotating CIP spray balls & underlet nozzles;

Working Platform Stainless Steel Piping;

Sanitary Centrifugal Pump.

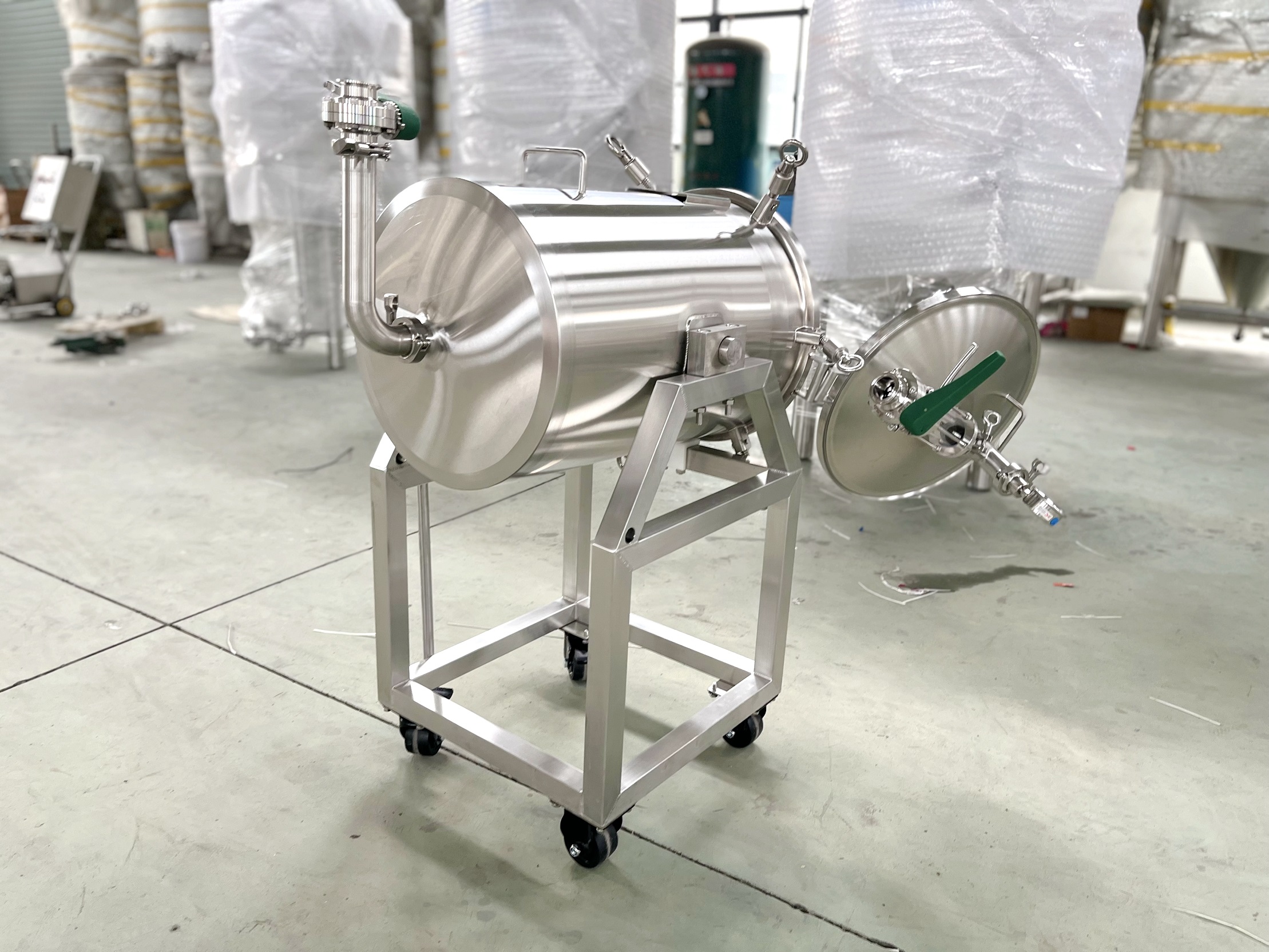

2.50L Coffee filter tank :

The tank includes a built-in filtration system that typically consists of a mesh, and the filtration accuracy is 2000 mesh.

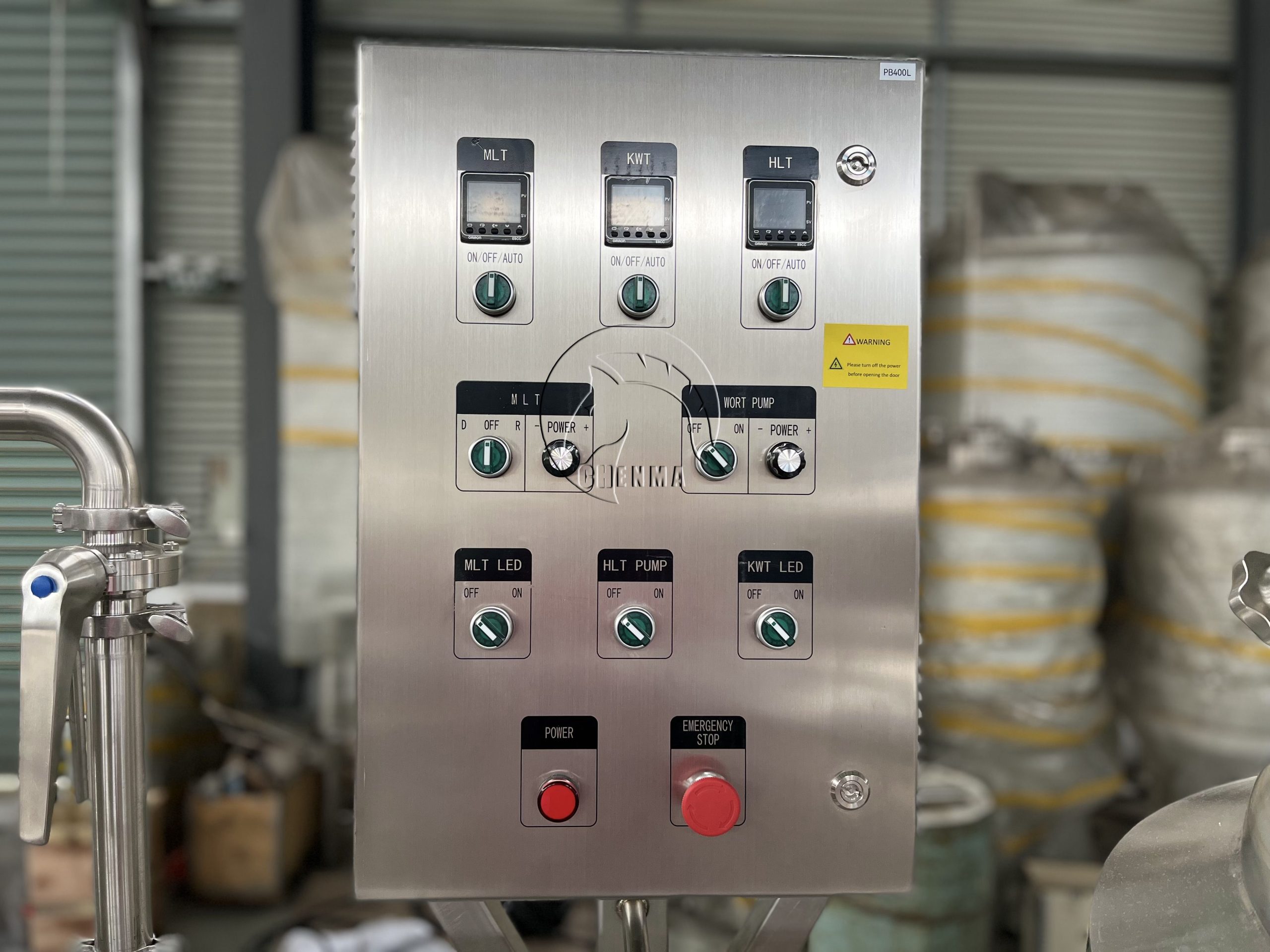

3.Cold Brew Coffee Brewing System Control Panel:

Variable Frequency Drives for Cold Brew System Mixer & Pump

Temperature Monitoring of Steep Tank.
