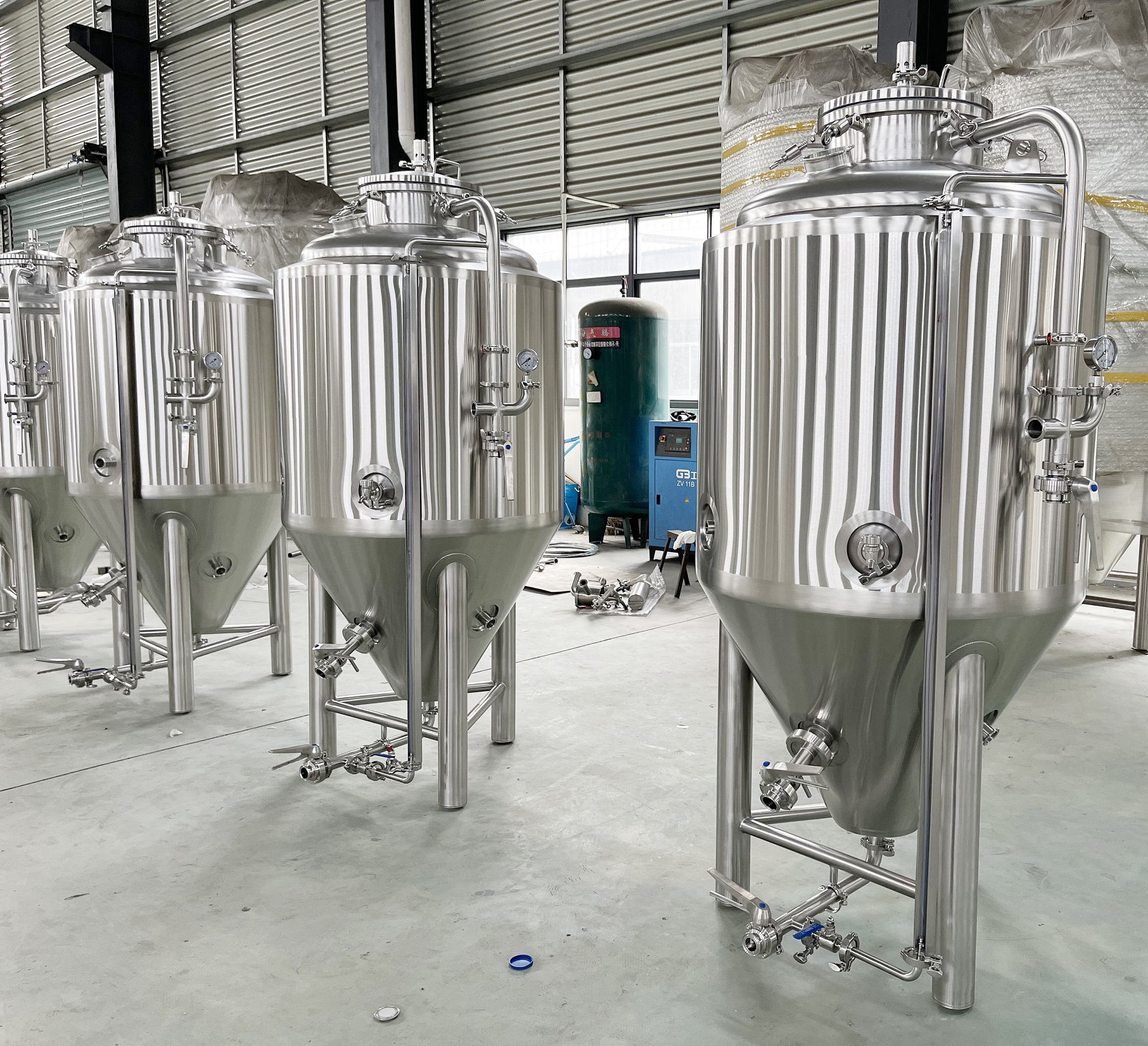

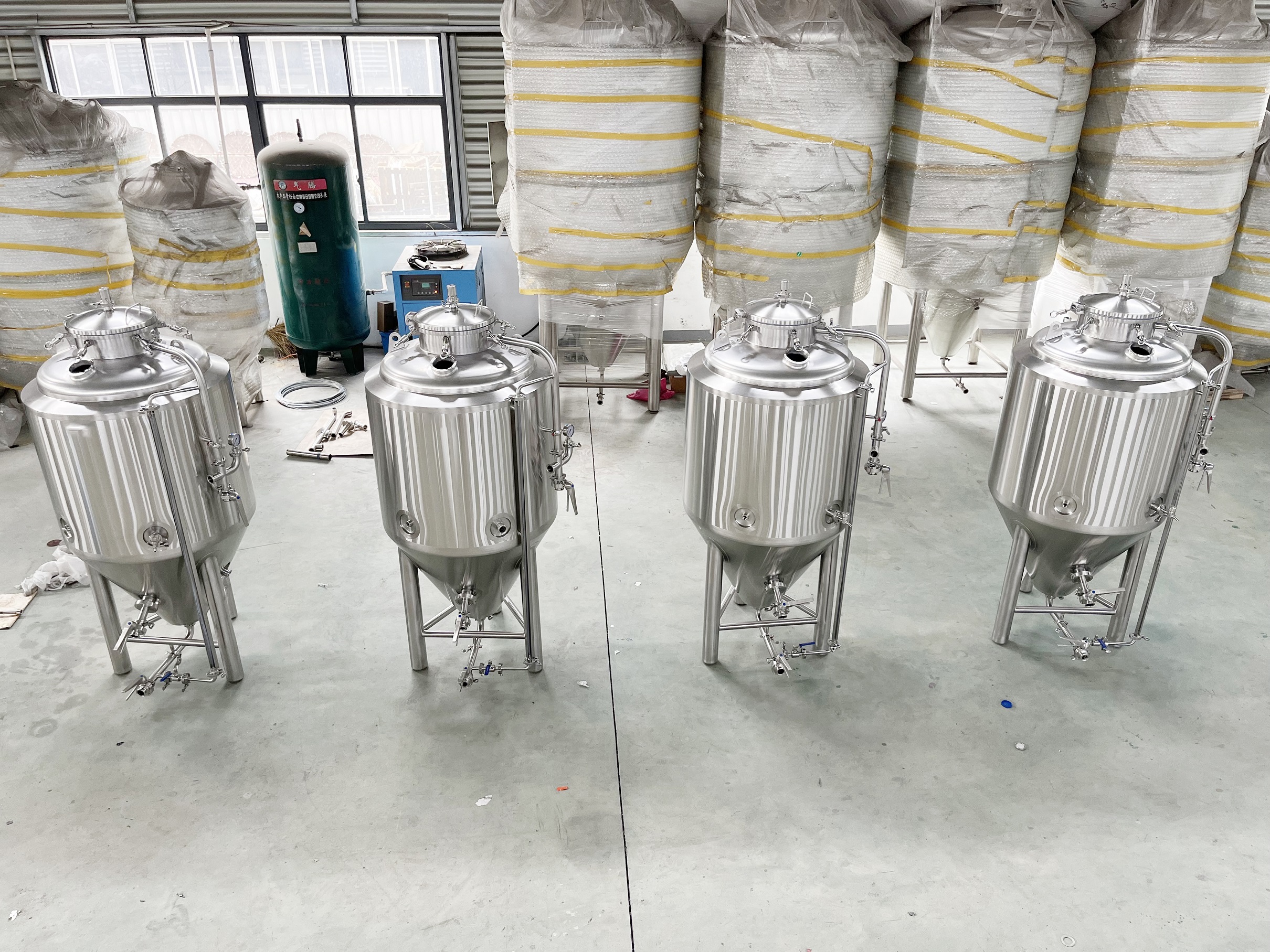

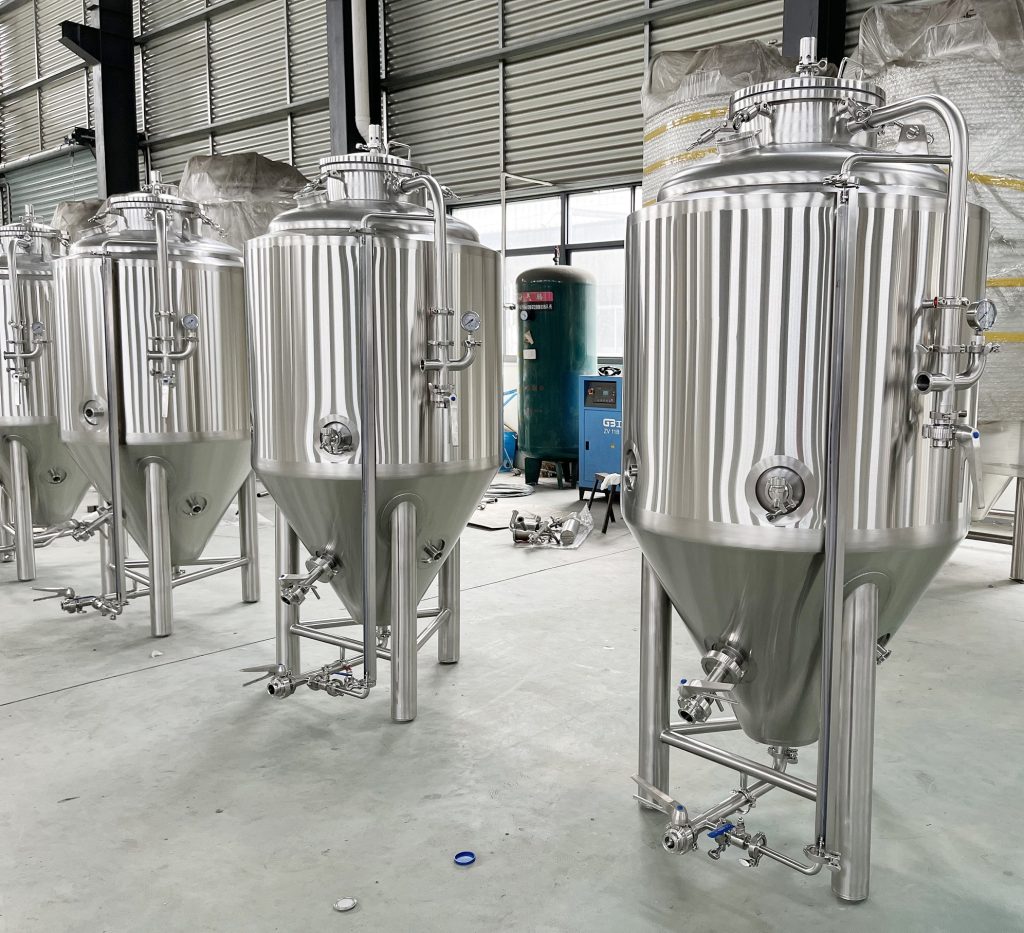

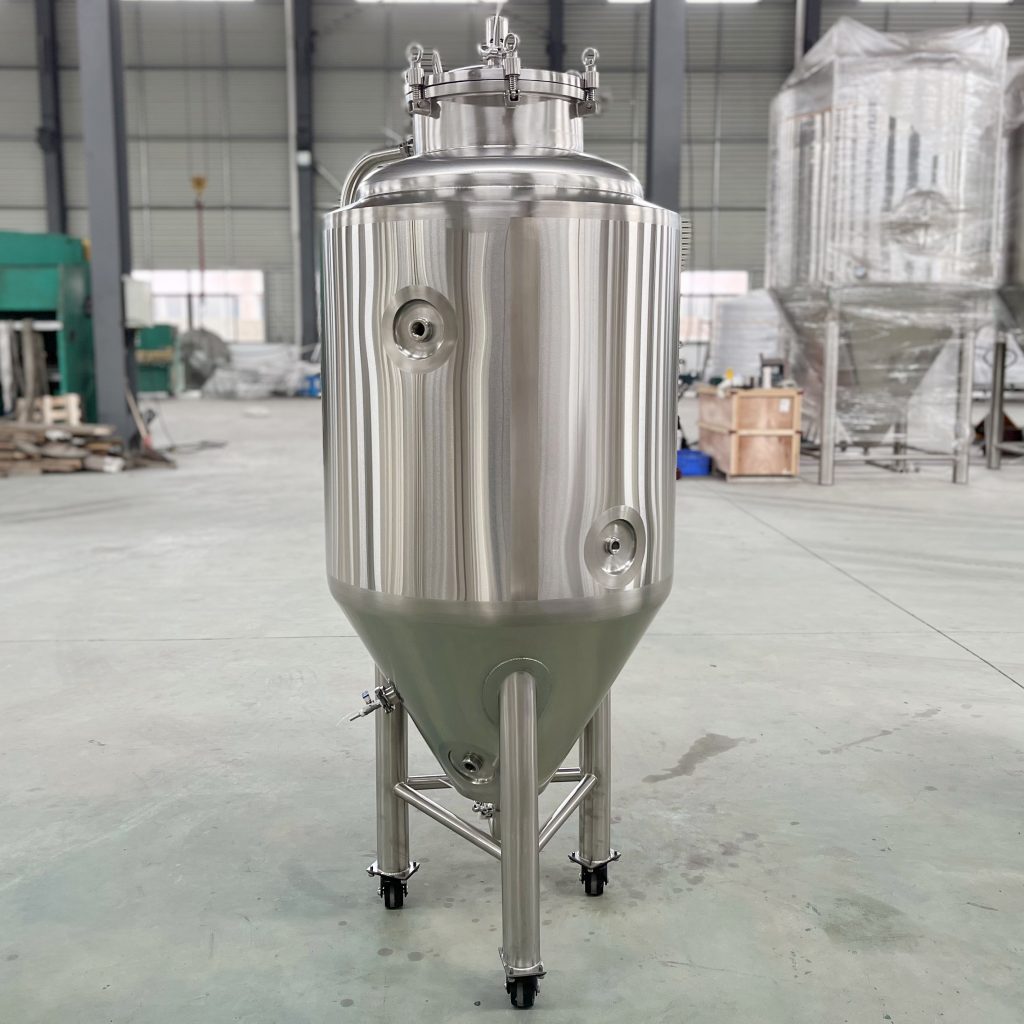

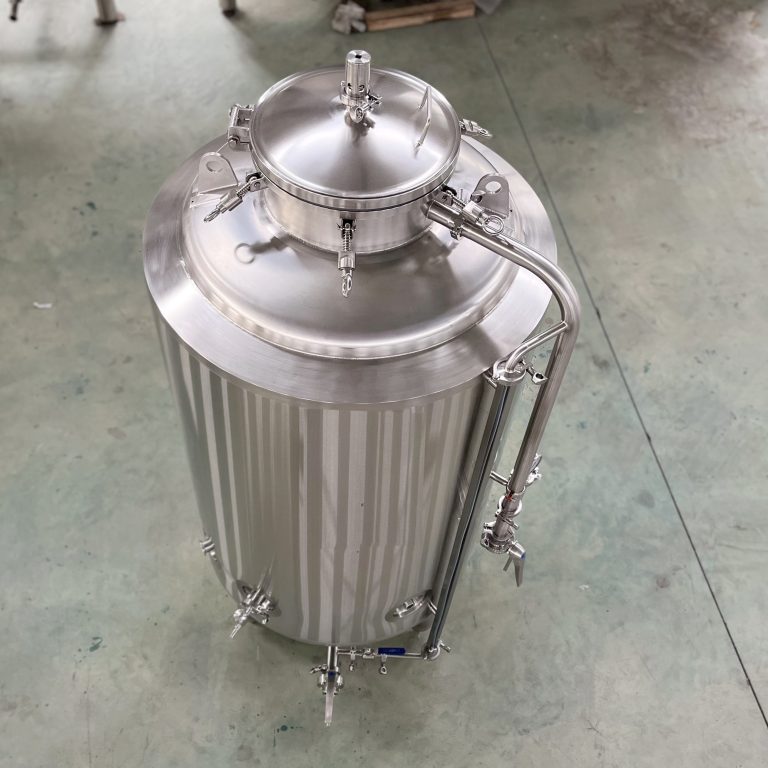

3BBL stainless steel beer unitank is a versatile, multi-functional vessel commonly used in breweries for both fermentation and conditioning of beer. 3 BBL unitank holds about 93 gallons (or 350 liters) of beer, making it ideal for small to medium-sized commercial breweries or brewpubs.

The specification list for 3bbl stainless steel beer unitank:

1.Sanitary Stainless steel 304,

2.Conical vertical tank,

3.Effective capacity: 3BBL; 25% top space to avoid beer foam out;

4.Dimension: diameter for 860mm and height for 2233mm;

5.Dome top head, cone bottom;

6.Surface brushed, welding line polish sanding light belt;

7.Working pressure is 2bar and testing pressure is 3ar;

8.Polyurethane insulation, thickness: 80mm;

9.Inner body thickness 3mm, cladding thickness 2mm;

10.Dimple plate cooling jackets(on side wall and cone);

11.Top manway;

12.With rotary CIP spray balls and arm;

13.Pt100temperature sensor;

14.1.5’’Sample valve in the cylinder;

15.Separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank

16.2’’PVRV;

17.Spunding valve;

18.Pressure gauge;

19.With carbonation stone;

20.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;

21.Complete with associated valves and fittings.

3BBL stainless steel beer unitank is a good size for or homebrewing or brewpub or pilot brewing system or small breweries producing small batches of beer or expanding production.
