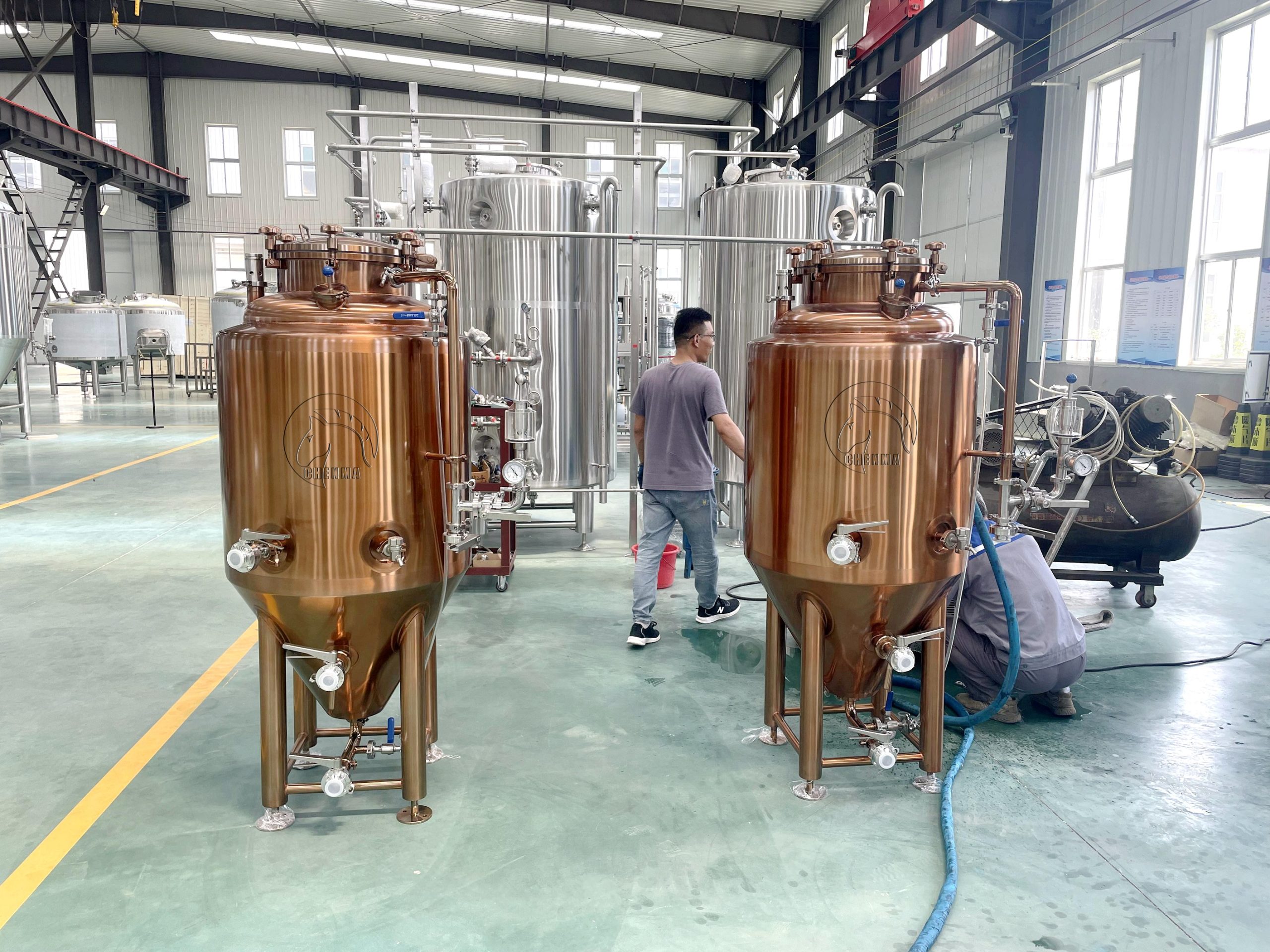

300L Copper Plating Conical Beer Fermenter is a specialized brewing vessel used for fermenting beer. The conical shape allows for easy removal of yeast and sediment that collect at the bottom of the fermenter, improving the clarity and quality of the beer.
300L copper plating conical beer fermenter is a specialized piece of brewing equipment often used in microbreweries, homebreweries, or small-scale commercial brewing, the outside of tank with copper plating, it can provides an aesthetic and traditional appearance while maintaining excellent heat transfer properties.
The specification for 300L copper plating conical beer fermenter as follows:
1).Inside with stainless steel 304, outer with copper plating,
2).conical vertical tank,
3).Effective capacity: 300L; 25% top space to avoid beer foam out;
4).Dimension: diameter for 860mm and height for 2200mm;
5).Dome top head, cone bottom;
6).Surface brushed, welding line polish sanding light belt;
7).Working pressure is 2bar and testing pressure is 3ar;
8).Polyurethane insulation, thickness: 80mm;
9).Inner body thickness 3mm, cladding thickness 2mm;
10).Dimple plate cooling jackets(on side wall and cone);
11).Top manway;
12). With rotary CIP spray balls and arm;
13).Pt100temperature sensor;
14).1.5’’Sample valve in the cylinder;
15).Separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank
16).2’’ PVRV;
17).Pressure regulating valve
18).Pressure gauge;
19).1.5’’ carbonation stone port;
20).Copper plating legs with bigger and thicker base plate, with screw assembly to adjust leg height;
21).Complete with associated valves and fittings.
