25HL Automatic Beer Brewing System

The 25HL Automatic Beer Brewing System is a brewing setup designed to produce craft beer on a relatively large scale, with a focus on automation to ensure consistency, efficiency, and ease of operation. This system is suitable for medium-sized breweries or for breweries looking to scale up their production capabilities.

General description:

Capacity: 25HL

Heating method: Steam

Efficiency: 8-10 Brews per day

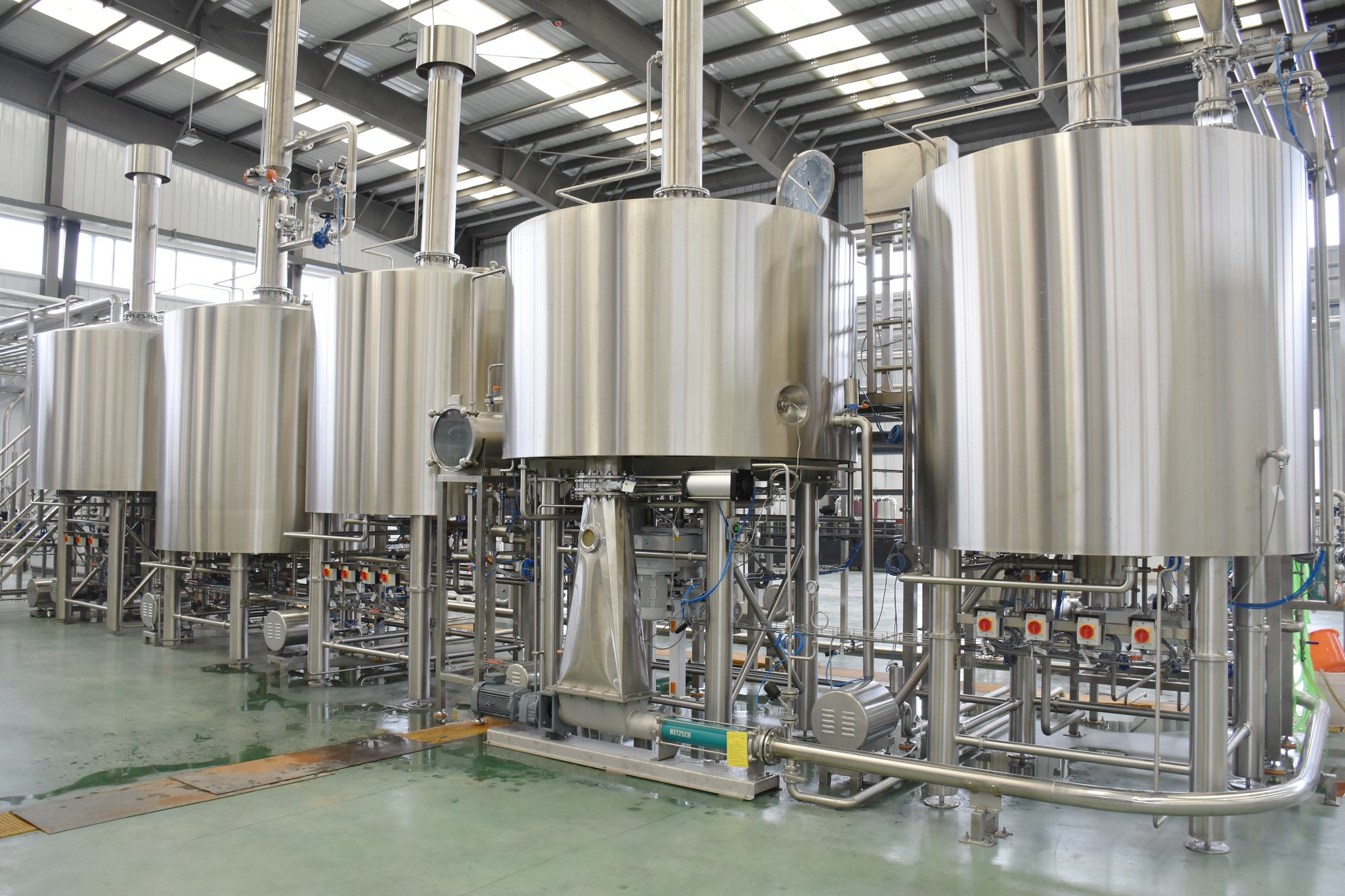

The traditional five vessel brewhouse configuration is mash tun + lauter tun + buffer tank + kettle + whirlpool tank, this helps make the brewhouse efficiency up to 10 brews per day. A rice cooker can be added if client wants to use other ingredients for brewing. Material for equipment fabrication can be SUS 304 or 316 when necessary, all depends on customers preference or the local climate. Such brewhouse is designed for industry brewery, which is more suitable for more brews per day and continuous production. Design concept comes from existing building plan or totally greenland. Design and fabrication based on clear brewing process from investors. The whole brewhouse can be with full automatic program, all production finished automatically, with production record and recipe creation function etc.

Making a brewery is longer term operation, our wish is helping you find the value behind our price, and develop the balance between income and investments.

Basic configuration:

• Mash tun with bottom paddle type stir, bottom & steam jacket, separate control
• Lauter tun with bottom stir blade, counter washing and wort collect coil, wort recirculation, adjustable stir height, bottom wort inlet
• Buffer tank between lauter and kettle, with steam jacket for pre heating
• Kettle with side and steam jacket, separate steam control for different batch size. With steam condensing unit. Optional Internal heater. Boiling under pressure
• Whirlpool with flat bottom, central spray nozzle, side wort outlet
• Support fittings: double / single stage plate cooler, piping strainer, pre masher, wort sink for sampling and sugar testing etc
• Standard brewhouse platform or customized as building requirement
• All pump & Stir with VFD, pump for hot liquid with water cooling device
• With separate hot water tank configured for sparging and mashing, to improve efficiency.
• Valves to be manual butterfly one or pneumatic (recommended)
• Piping & valve connection to be TC or DIN.

Features:

• Energy saving, higher brewing efficiency and lower material consumption
• Higher wort wort extract
• Fully automatic mash, wort, water flow and auto temp control
• Well designed steam system to increase heating efficiency and lower energy lost
• More reasonable piping construction to avoid the wort aeration problem and decrease the material lost
• Internal heater for separate kettle, working with cylinder and bottom jacket for better boiling effect.
• Possible to make boiling process under pressure, especially for brewery at higher altitude.
• Automation beer brewing system with curve indication and production record printing, with recipe storage function, clients can create new recipe as the exact production requirement.

A 25HL Automatic Beer Brewing System is ideal for small to medium-sized breweries looking to produce high-quality craft beer efficiently and consistently. The integration of automation ensures precision in the brewing process, reduces manual labor, and enhances overall productivity. With proper installation and maintenance, such a system can significantly boost a brewery’s capacity and product quality, helping to meet market demands effectively.
