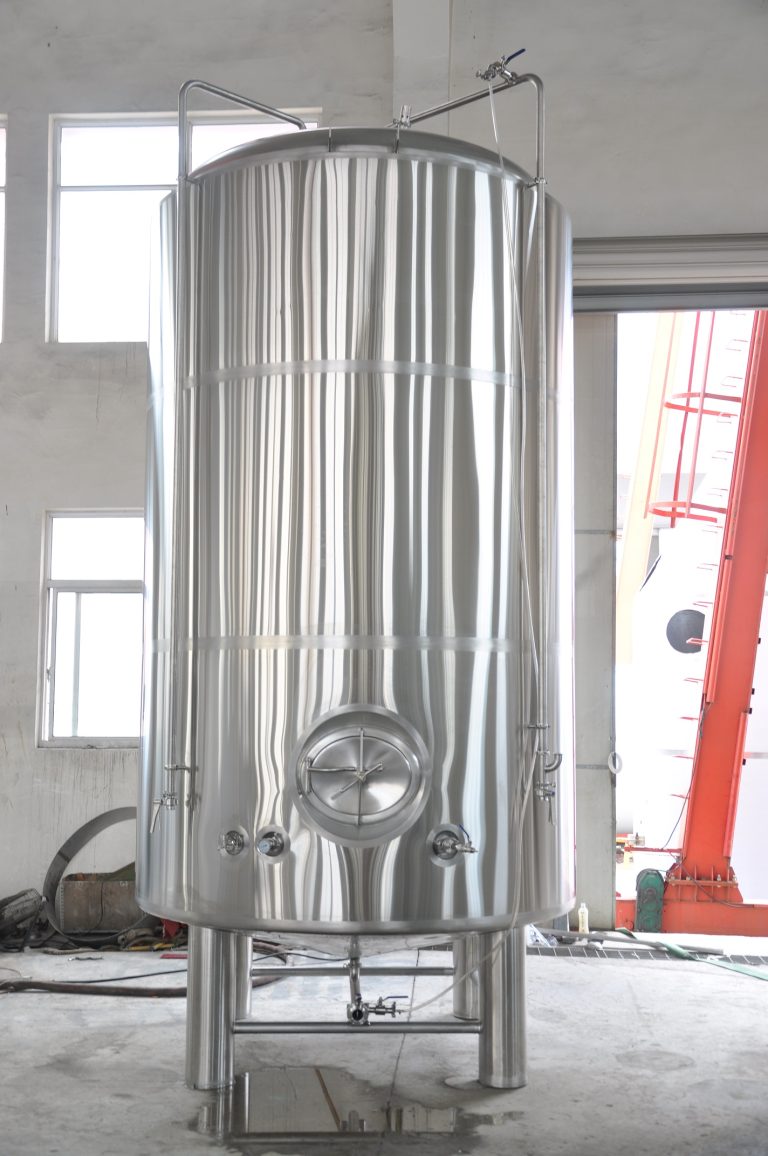

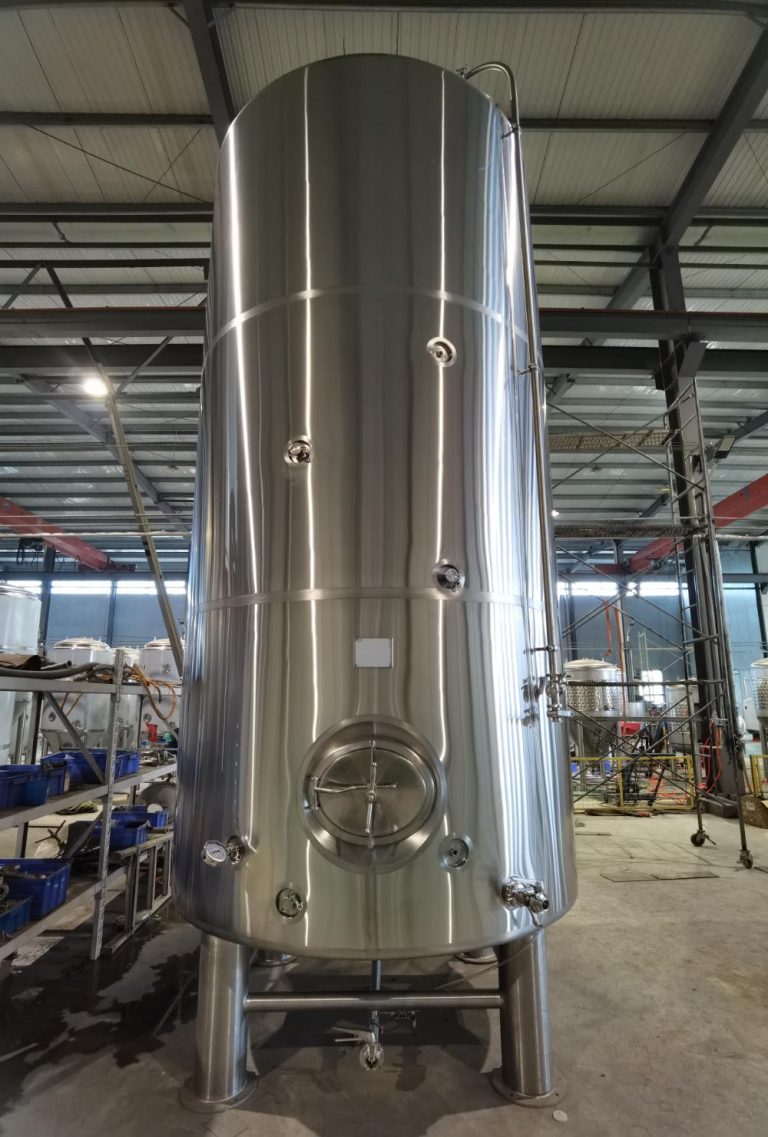

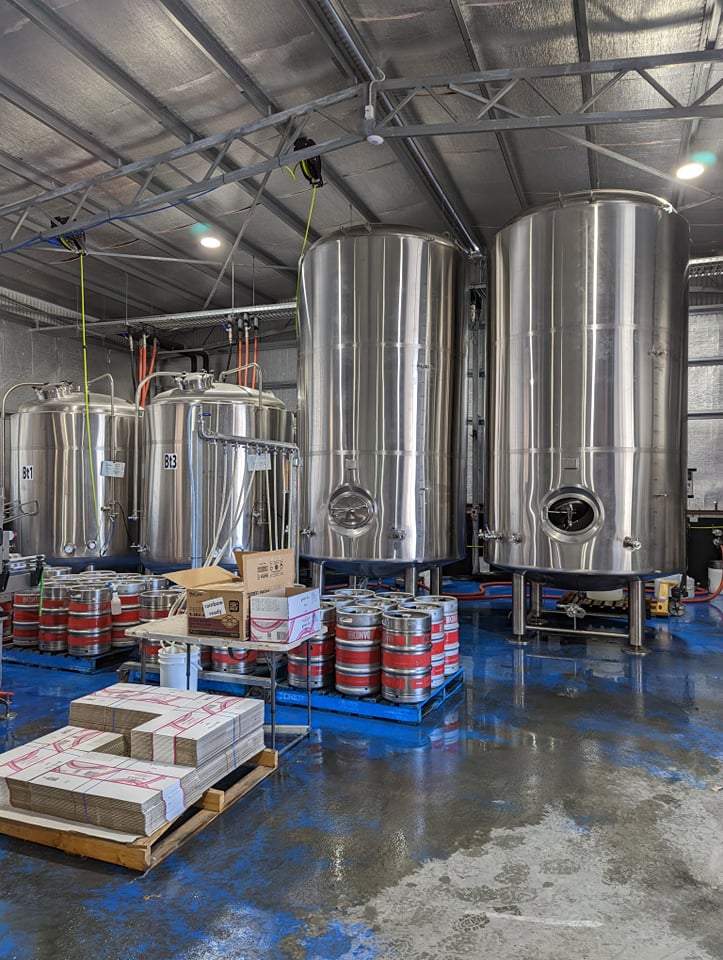

A 100HL bright beer tank is a significant vessel used in the brewing industry for the storage and conditioning of beer after fermentation.Also known as a brite tank, this type of vessel is used for the final conditioning, carbonation, and clarification of beer before it is packaged for sale.

Advantage：

Certified stainless steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. All tanks and jackets inspected and pressure tested to 2 times operating pressure. All tanks insulated with high efficiency polyurethane foam. We can custom fabricate any tank to meet your brewery’s space and height restrictions. Tank design pressure is 30 PSI.

Standard product features:

• Brite Beer Tank w/ 20% head space.
• Design pressure 30-45psi or 2-3bar.
• Interior shell: SUS304, thickness 3mm.
• Exterior shell: SUS304, thickness 2mm.
• Interior and exterior finish bright polish to 2B, hygienic surface.
• Options of vertical or horizontal orientation.
• Dual ports for racking and discharge/CIP with butterfly valve and fittings.
• Side or Top man way door, shadowless.
• Dimple glycol cooling jackets with glycol inlets and outlets.
• Polyurethane foam insulation, thickness 80mm/>3” on side and bottom.
• Fully welded exterior shell.
• 4 legs with levelling foot pads.
• CIP arm and spray ball.
• Vacuum relief at 2bar.
• Pressure relief valve at 30-45psi as standard.
• Sanitary pressure gauge.
• Perlick style sample valve.
• Carbonation/sinter stone with one way check valve.
• Quick connect gas valve.
• Lifting Lugs.

OPTIONS:

• Additional blow off pipework.
• Dry hopping port
• Larger drain ports.
• Upgrade drain port size
• Racking arm
