500L Microbrewery Plant is delivery to FOS, France in May, 2023.

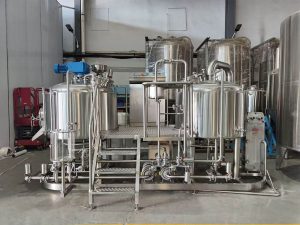

One of our France customer ordered 500L 2 vessels electric brewhouse with 1000L hot liquor tank, 4pcs 500L fermentation tanks, malt miller, glycol cooling system, 50L CIP unit system, control cabinet and connection pipes, accessories. More details see below:
| No. | Item | Capacity | Parameters | Q’ty | |
| 1 | Kettle/
Whirlpool tun |
500L | 1.Effective Capacity: 500L,
2.Boundary dimension:φ1160×2522mm, 3.Heating:Electric heating, 5kw/pc, 7pcs, 1pc for spare use, total power:30kw, 4.Insulation:rock wool 5.Insulation thickness:75mm 6.Interior thickness:3mm 7.Exterior thickness:2mm 8.Dished top,Top mounted manway 9.Temperature sensor 10.Whirlpool inlet 11.CIP 360°rotary spray device 12.Material: SUS304,Brushed outer shell 13.100%TIG welding with pure argon gas shield 14.Indoor exhaust design 15.4pcs completely SUS304 legs 16.With all matched duck valves and accessories |
1 | |
| 2 | Mash/Lauter tun | 500L | 1.Effective Capacity: 500L,
2.Boundary dimension:φ1160×2370mm 3.Insulation: rock wool 4.Insulation thickness:75mm 5.Interior thickness:3mm 6.Exterior thickness:2mm 7.Mechanical agitation:frequency control 8.Dished top,Top mounted manway 9.CIP 360°rotary spray device 10.Slotted false bottom 11.Side spent grain door 12.Material: SUS304,Brushed outer shell 14.100%TIG welding with pure argon gas shield 15.4pcs completely SUS304 legs 16.With all matched duck valves and accessories |
1 | |
| 3 | Wort Pump | 3T/H | Flux:3m3/h,lift pump:24m
Centrifugal pump,frequency control Temperature , resistance:120℃,inletφ38,outletφ32, Material:Sanitary SUS304 |
1 | |
| 4 | Malt Miller | 300Kg/H | 1.Production capacity:300kg/h
2.Type:Double roller 3.Include motor, belt pulley and belt etc. 4.Material: SUS304 |
1 | |
| 5 | Beer Fermenter | 500L | 1.Effective Capacity:500L, SUS304, Oil-brushed finish cladding
2.Boundary Dimension:φ900×2189mm 3.Dimple plate jacket cooling, thickness:1.5mm 4.Insulation:polyurethane, 5.Side manhole design, 5.Insulation thickness:50mm 6.Dimple plate cooling jacket:1.5mm 7.Interior thickness:3mm 8.Exterior thickness:2mm 9.Dished head and taper angle 90° 10.Bottom cone with carbonation stone 11. Top hops adding port 12. CIP arm, racking arm 13.With Solenoid valve,breathing valve,mechanical pressure regulating valve,sampling valve and accessories matched vales. |
4 | |
| 6 | Glycol cooling system | Including one 1000L glycol tank,5HP glycol chiller, glycol pump and glycol pipeline and insula | assort | ||
| 7 | Sanitation grade hose | Ф32 internal diameter, L=8m/pc
Material:Foodstuff rubber |
2pcs | ||
| 8 | Cold media Pipeline,Valve | φ32/φ25;
With Pipeline,Valves(Manual butterfly valve,ball valve,pipes and fittings) Material:PPR Assorted to the whole system |
1 set | ||
| 9 | Insulation Pipeline,Valve | φ32/φ25(internal diameter),
With PAP plate,Adhesive tape; Material:Polyethylene Assorted to the whole system |
1 set | ||
| 10 | Control Cabinet | Stainless steel 304
SIMENS PLC touch screen Smart200 CE Temperature and Pressure control Temperature Sensor assorted Temperature Pressure Gauge assorted |
1 | ||
This customer sent first inquiry on 9th Sep,2022, deposit arrived in Mar, 2023, we have pleasant discussion and provided professional brewing equipment design, suggestions, thanks for customer trust and choose us! Looking forwarder to the next cooperation in near future!
